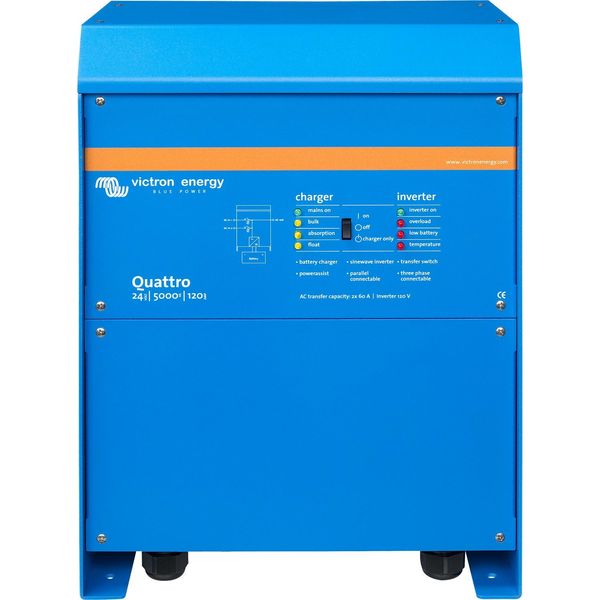

Name: Victron Quattro Inverter Charger (24V / 5000VA / 120A)
Brand: Victron
SKU: VICT-VC-QUA245021010
Price: 2615.76 GBP
Availability: InStock

Victron Quattro Inverter Charger (24V / 5000VA / 120A)

Pure Sine Wave Output 10,000 Watt Peak Power, 4,250 Watt / 5,000 VA Continuous, 120 Amp Battery Charger

1 in stock

Compare

Description

Pure Sine Wave Output 10,000 Watt Peak Power, 4,250 Watt / 5,000 VA Continuous, 120 Amp Battery Charger, 2 x 30 Amp Power Transfer Switches. Dimensions (H) 444 x (W) 328 x (D) 240mm. 30kg weight. Can be used in parallel for unlimited power or 3 Phase Systems. 24V

Per Item

Additional information

Weight	30.00 kg

Specifications

Brand	Victron
Connection [AC]	Hard wired, M6 bolts
Charger Short Circuit Protection	Yes
Frequency Description	Charger Input: 45-65Hz, Inverter Output: 50Hz ± 1%
Maximum Output Current [A]	120
Number of Outputs	1 + 4A float
Additonal Float Charge Output	4A
Optional Remote Panel	Yes, see data sheet
Cables Included	No
Output Frequency [Hz]	50
Output Power [W] Continuous	5000
Output Power [W] Peak	10000
Waveform	True Sine Wave
Connection [DC]	8mm stud
Voltage Description	Charger Input: 187-265V AC, InVerter Input: 19-33V DC, InVerter Output: 230V AC ±2%
Application	FLA, SLA, AGM, GEL, LiFePO4 Batteries
Rating	IP21
Efficiency	94%
Height Description	444mm
Capacity Description	Recommended Battery Capacity: 600 – 1200 Ah
Width	328mm
Depth	240mm
Weight	30kg
Material	Aluminium (blue RAL 5012)
Wattage	Output @ 25°C: 4000W, Output @ 40°C: 3700W, Output @ 65°C: 3000W
Approvals	EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, ECE R10-4
Operating Temperature	-40°C to +65°C
Charge Characteristic	Automatic, adaptive
External Temperature Sensor	Yes
Style	Combined Inverters & Battery Chargers
